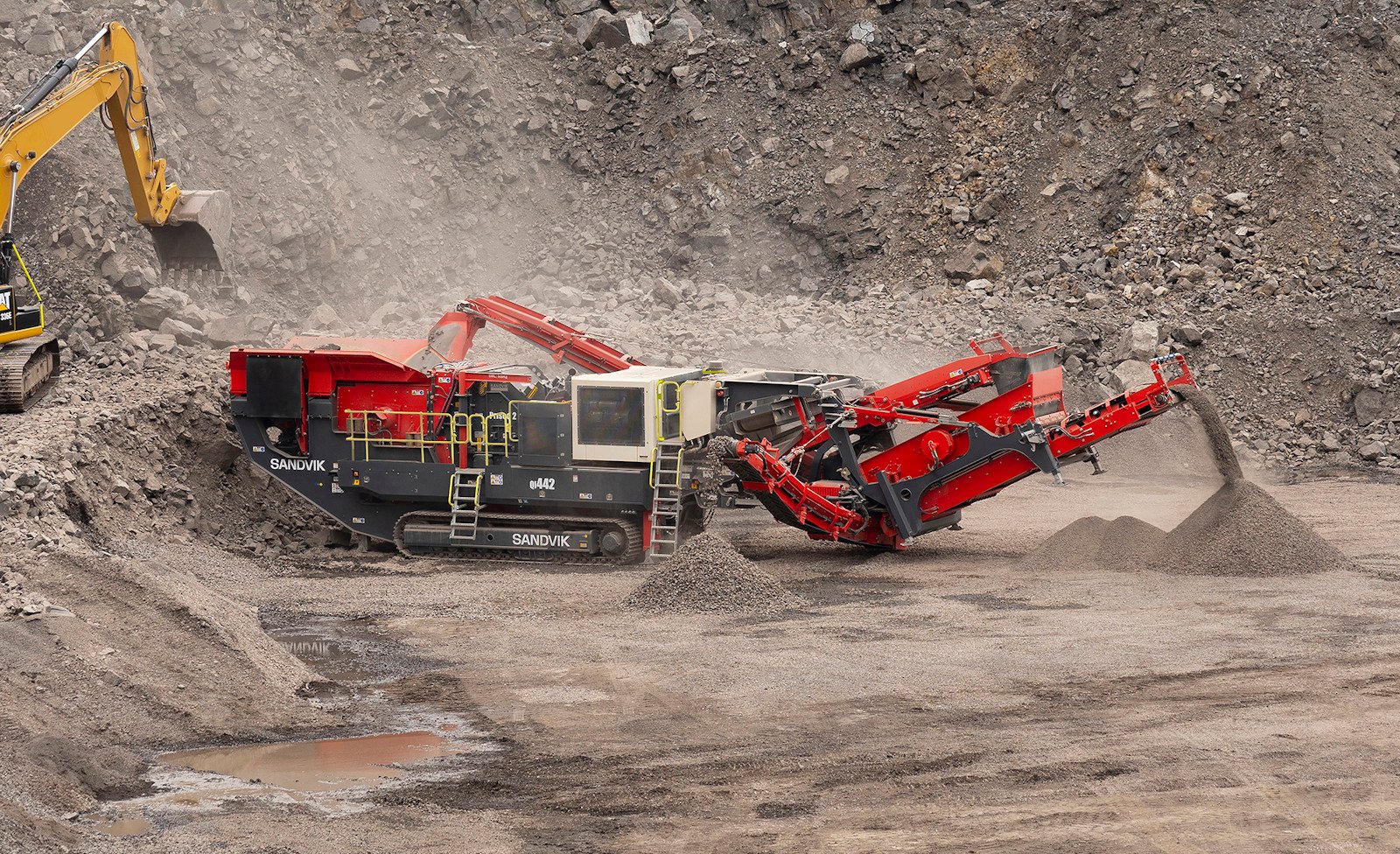

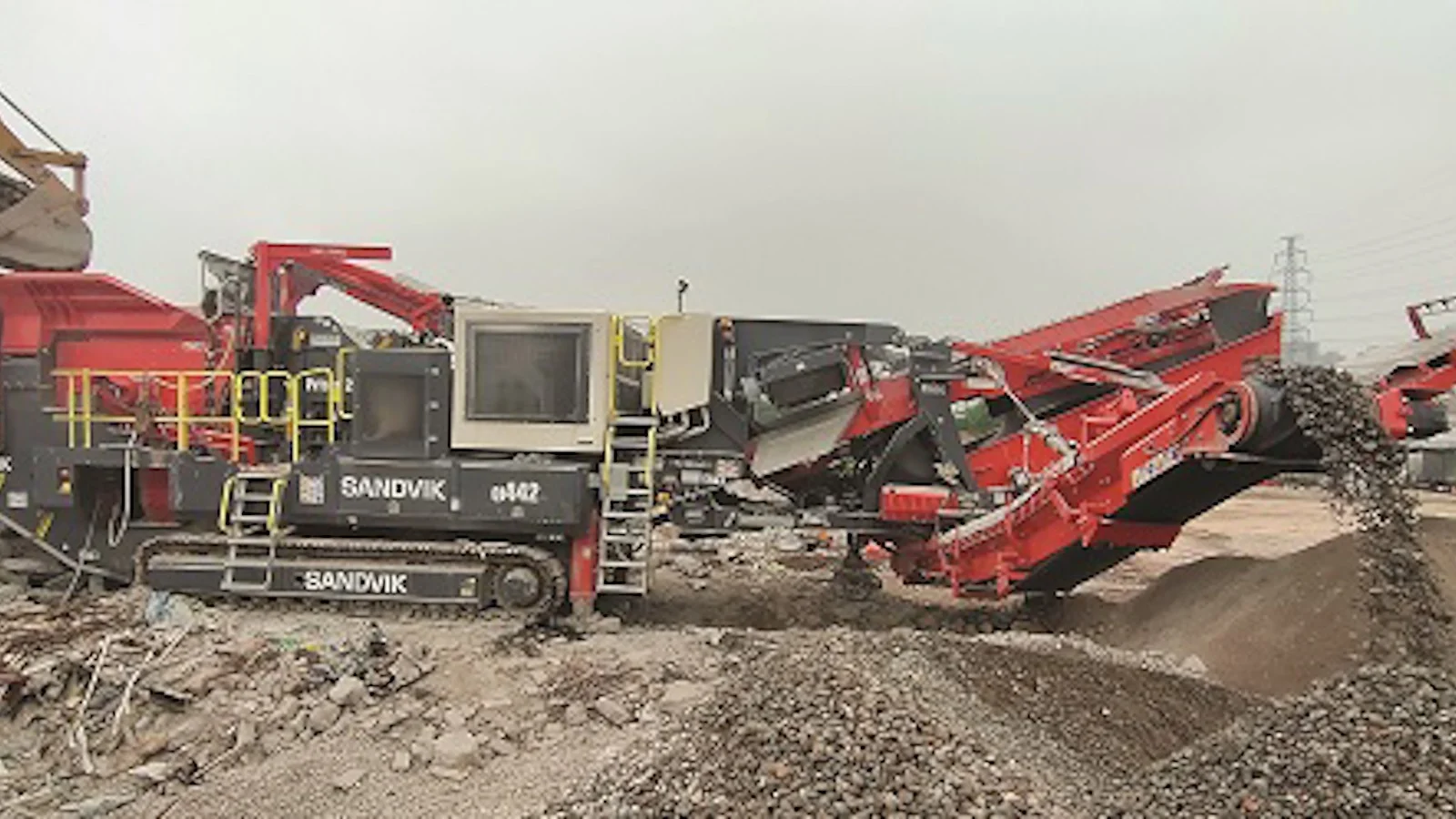

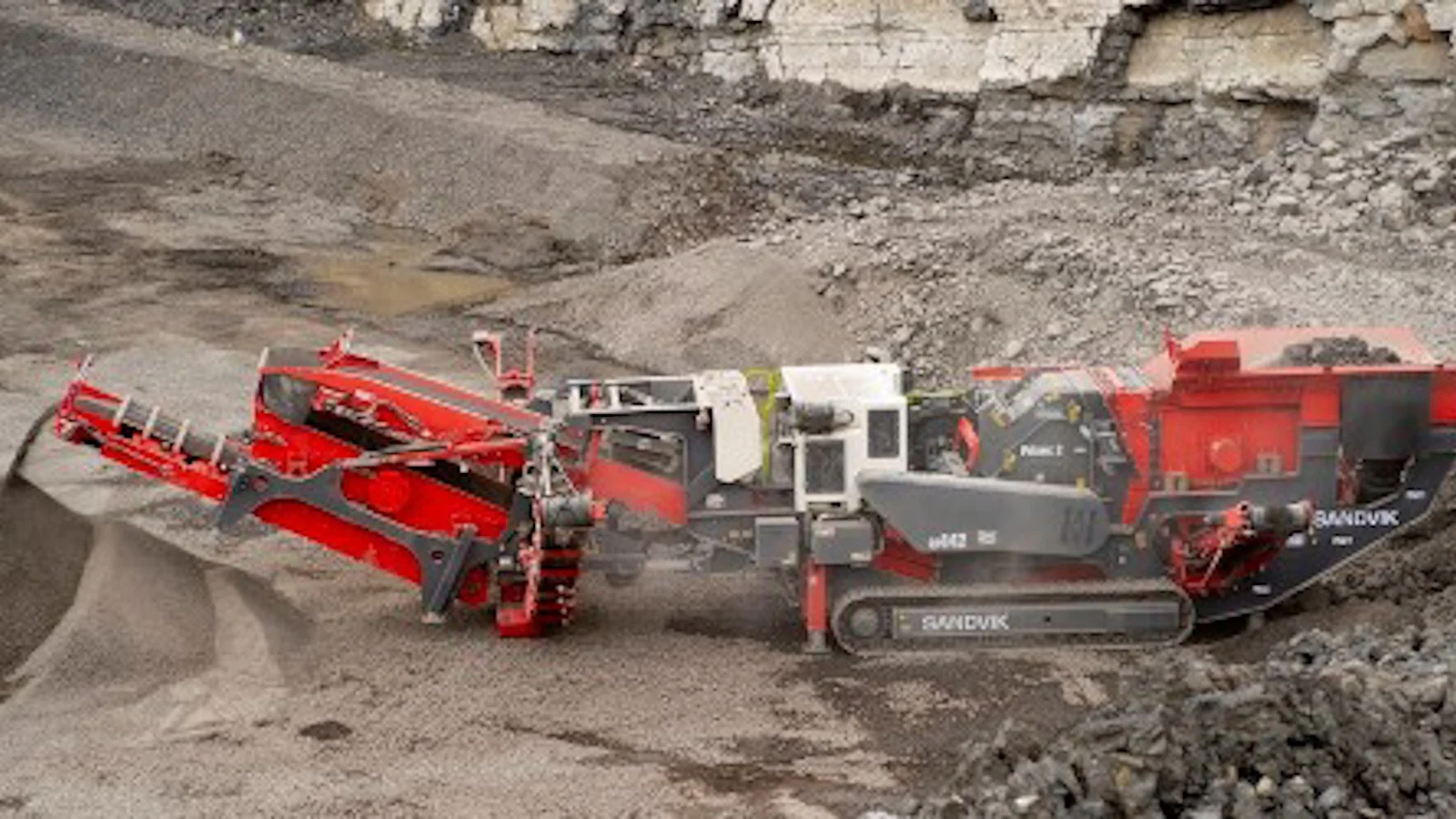

QI442 HSI impact crusher


Sandvik QI442 is a large heavy duty tracked impactor featuring the market leading Prisec™ technology offering a primary and secondary crushing solution in one unit. Maximum productivity and efficiency in a single investment.

Equipment: Sandvik Prisec™ HSI

Feed opening: 1360 x 800 mm (54 x 31 in.) mm

Max. feed size: Up to 800 mm (32 in.)

Capacity: Up to 500 mtph (551 stph)

Enquire about this equipment
Contact us
  • Features
    • User friendly PLC control system –
      and color screen for ease of operation
    • Hydraulic raise/lower product conveyor –
      to alleviate rebar obstruction
    • Double deck pre-screen –
      for accurate fines removal
    • Adjustable tip speed –
      for precise end product refinement
    • Optional double or single deck hanging screen –
      which is fully detachable without the need of additional lifting equipment
  • Product Data
    EquipmentSandvik Prisec™ HSI
    Feed opening1360 x 800 mm (54 x 31 in.)
    Max. feed sizeUp to 800 mm (32 in.)
    CapacityUp to 500 mtph (551 stph)
    EngineC13 Acert 328 kW (440 hp)*
    Transport length15.7 m (52.0 ft)
    Transport width3.3 m (10.7 ft)
    Transport height3.6 m (11.1 ft)
    Weight56,879 kg (125,396 lb)

    * Please refer to technical specification sheet for alternative engine options.
    Please note all weights and dimensions are for standard units only.
    Former Names: Fintec 1440, QI440 Mobile Impact crusher

  • Additional Product Information

    Capable of operating in primary and secondary applications, we have designed the QI442 with productivity, safety and user-friendliness at its core.

    Featuring the newly developed CI621 Prisec™ Impactor, this comes with a host innovations, primarily focused on increased safety during maintenance and serviceability. These include a new rotor position and locking device, new hammer locking wedges for quicker removal and fitting, and a new wedge removal tool to provide safer installation and removal.

    Other models within this range include Sandvik QI341 impact crusher and Sandvik QI353 impact crusher.

  • Additional Advantages
    • My Fleet remote monitoring system –
      with 7 year data subscription to help optimize your machine operation
    • Security+ extended warranty & service package for higher uptime and peace of mind.
