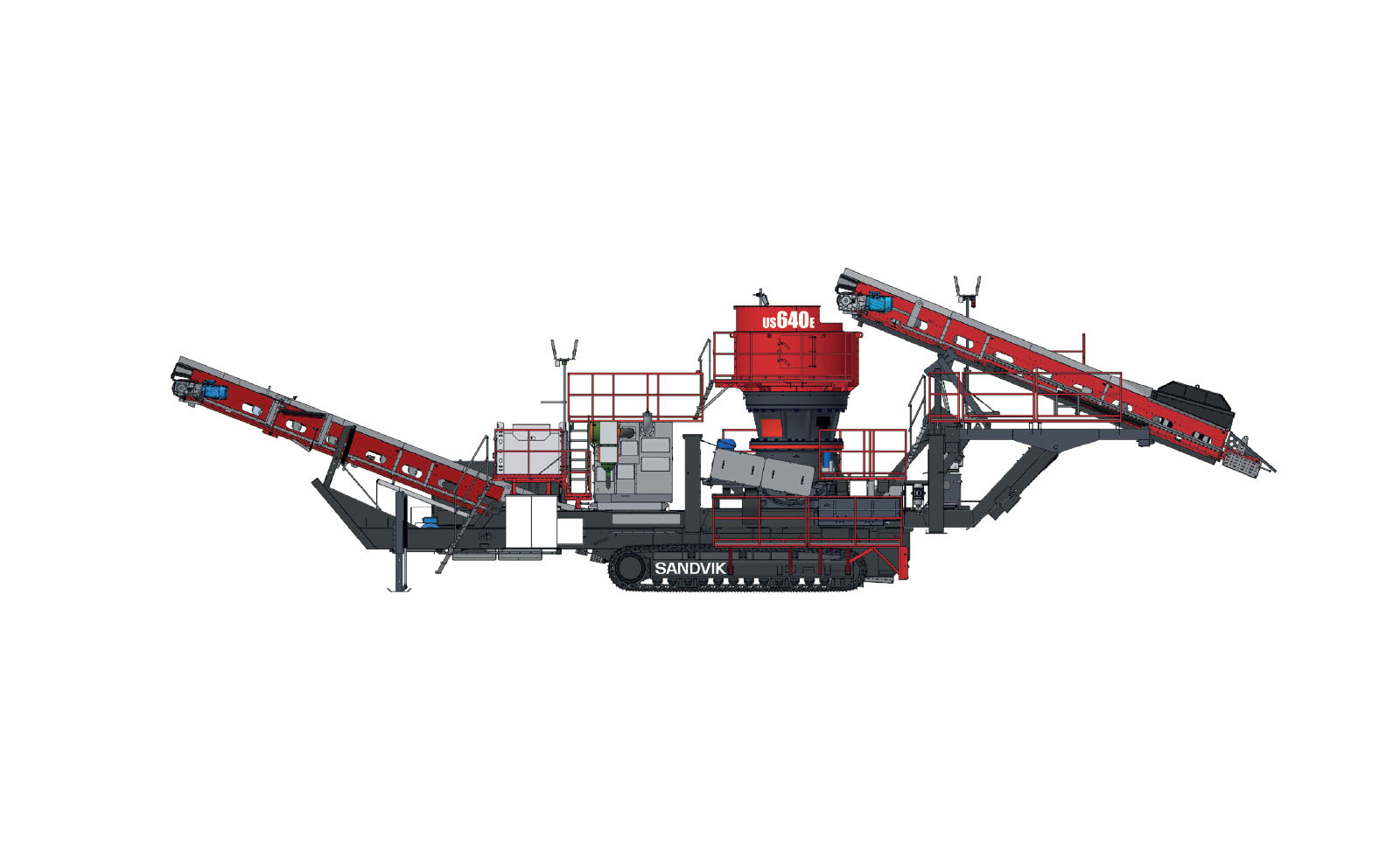

US640E Cone crusher

Sandvik US640E is a heavy duty, electrically powered S-type cone crusher designed for high productivity and low energy consumption. A true reliable workhorse made for the toughest conditions.

Equipment: Sandvik CS660 cone crusher

Max. feed size: 620 mm (24 in.)

Capacity: Up to 900 mtph (990 stph)

Enquire about this equipment
Contact us
  • Features
    • Ideal as a secondary crushing stage –
      for high size reduction and high capacity
    • Advanced process automation –
      to ensure ease of operation
    • Superb production capabilities –
      driven by your needs
    • Easily accessed –
      for service and maintenance
    • Low emissions and low cost per tonne –
      due to flexible operation through electrical mains or onboard diesel generator
  • Product Data
    EquipmentSandvik CS660 Cone Crusher
    Max. feed size620 mm (24 in.)
    CapacityUp to 900 mtph (990 stph)
    PowerVolvo D16 GE / CAT C18 Diesel Generator 670 kVA
    Transport length Part 116.8 m (54.1 ft)
    Transport length Part 215.3 m (50.3 ft)
    Transport width Part 14.1 m (13.6 ft)
    Transport width Part 23.9 m (12.1 ft)
    Transport height Part 14.00 m (13.20 ft)
    Transport height Part 24.04 m (13.30 ft)
    Weight Part 149,000 kg (108,000 lb)
    Weight Part 262,000 kg (136,700 lb)

    Please note all weights and dimensions are for standard units only.

  • Additional Product Information

    Featuring the CS660 cone crusher with large intake and an automated process control system, it is aimed at the demanding quarry and mining operator. This machine offers the highest performance with minimal downtime and has proven itself in the toughest of applications and in all climatic conditions.

    Other models within this range of cones include Sandvik UH640E.

  • Additional Advantages
    • Security+ extended warranty & service package for higher uptime and peace of mind
