The RPV03S is ideal attachment for secondary demolition. The 140 kg Static Pulverizer is suitable for carriers in the 1.5 to 4 tonne range.

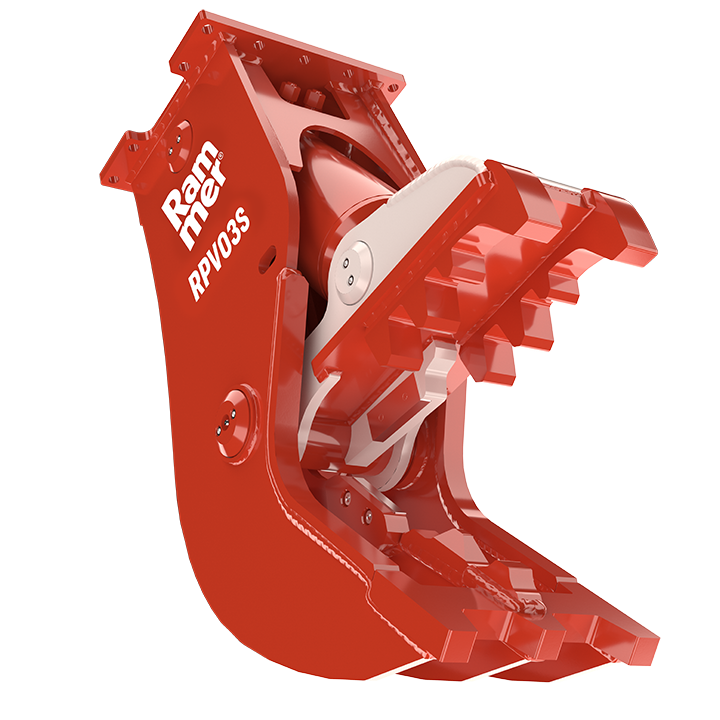

The Rammer RPV03S is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.

Enquire about this equipment
Contact us
  • Features
    • Grated jaw design
      The fixed jaw allows crushed material to pass through increasing productivity
    • Manufactured from HB400 steel
      Highly resistant material to work on concrete.
    • Field replaceable cutting blades
      Field replaceable, reversible and adjustable cutting blades increase the cutting capacity and availability. This reduces maintenance costs and keeps performance at a high level.
    • Hardened pins and bushings
      Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
  • Applications
    • Pulverizing
      Separating rebar from concrete Preparation of material for crusher or landfill
    • Secondary demolition
      Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
    • Recycling
      Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
  • Specification
    Minimum working weight140 kg310 lb
    Weight120 kg260 lb
    Height770 mm30.30 in
    Max. jaw opening300 mm11.80 in
    Jaw width220 mm8.70 in
    Max. cutting force410 kN
    Max. crushing force200 kN
    Operating pressure200 – 250 bar2900 – 3626 psi
    Max. operating pressure250 bar3626 psi
    Oil flow range30 – 60 l/min7.9 – 15.9 gal/min
    Closing time at max oil flow3.1 s
    Opening time at max oil flow2.0 s
    No. of cycles per minute at max oil flow11.7
    Cutting blade length80 mm3.15 in
    Max. diameter to be cut15 mm0.59 in
    Pressure line connection (IN)GAS 3/8″
    Return line connection (OUT)GAS 3/8″
    Optimum oil temperature40 – 60 °C104 – 140 °F
    Allowed oil temperature range-20 – 80 °C-4 – 176 °F
    Optimum oil viscosity at operating temperature30 – 60 cSt
    Allowed viscosity range20 – 1000 cSt
    Carrier weight, range  *11.5 – 4 t3300 – 8800 lb
    *1   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

    Specifications are subject to change without notice (Tuesday, June 21, 2022)
