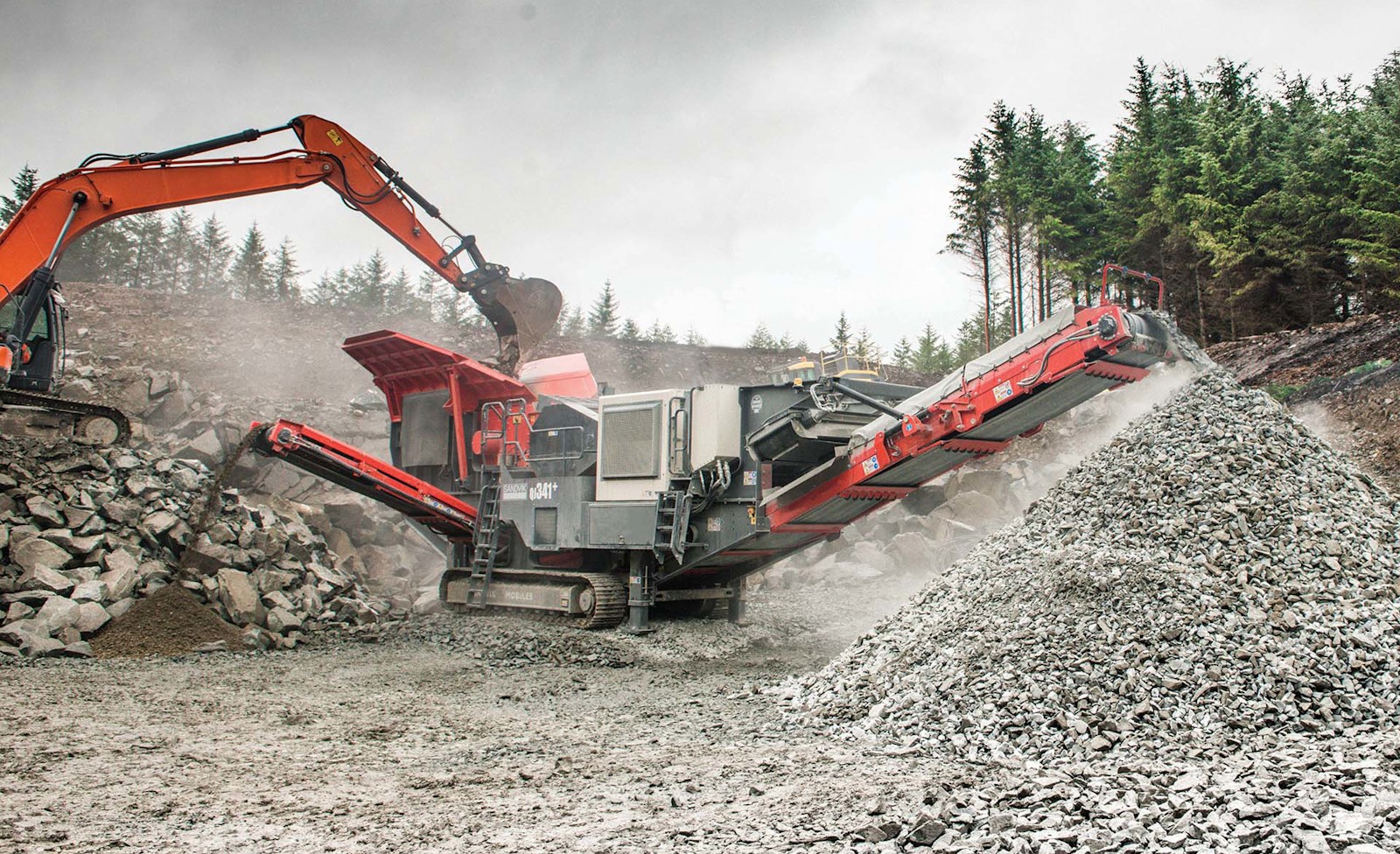

QJ341+ Jaw crusher


Sandvik QJ341+ is an improved addition to our bestselling QJ341. This model comes with the added benefit of a double deck pre-screen as standard, while maintaining all of the features which made the original so popular.

Equipment: Sandvik C12 jaw crusher

Feed opening: 1,200 x 750 mm (47 x 29 in.)

Max. feed size: 650 mm (26 in.)

Capacity: 450 mtph (496stph)

Enquire about this equipment
Contact us
  • Features
    • Double deck pre-screen – for better efficiency and productivity
    • Telescopic natural fines conveyor – for greater stockpiling capabilities
    • Jaw level sensor – to control the feed rate with minimal intervention
    • Three position by-pass chute – for faster fines transfer and greater flexibility of material distribution
    • Hydraulic raise and lower facility – on the main conveyor enables simple, consistent optimization of your processes
  • Product Data
    EquipmentSandvik C12 Jaw Crusher
    Feed opening1,200 x 750 mm (47 x 29 in.)
    Max. feed size650 mm (26 in.)
    Capacity450 mtph (496 stph)
    EngineC9 280 kW
    Transport length14.7 m (48.3 ft)
    Transport width2.8 m (9.2 ft)
    Transport height3.8 m (12.5 ft)
    Weight53,000 kg (116,845 lb)

    * Please refer to technical specification sheet for alternative engine options.
    Please note all weights and dimensions are for standard units only.

  • Additional Product Information

    The pre-screen will enable the removal of fines to increase your throughput resulting in greater efficiency, less wear on the crusher and ultimately higher productivity. This will be particularly effective in applications where you have a high proportion of fines in the feed material.

    As with the standard model, Sandvik QJ341+ comes with features purposefully designed to provide the user with total control, such as the Sandvik PLC control system and control screen. With any equipment operator safety is vital, so this machine includes a self locking hopper, and can be set up from ground level.

    Other models within the QJ mobile jaw crusher range of jaws include Sandvik QJ241 and QJ341.

  • Additional advantages
    • Fitted with Optitooth jaw plates –
      for extended life, increased throughput and reduced fuel
    • My Fleet remote monitoring system with 7 year data subscription –
      to help optimize your machine operation
    • Security+ extended warranty & service package for higher uptime and peace of mind
