UV320E VSI impact crusher

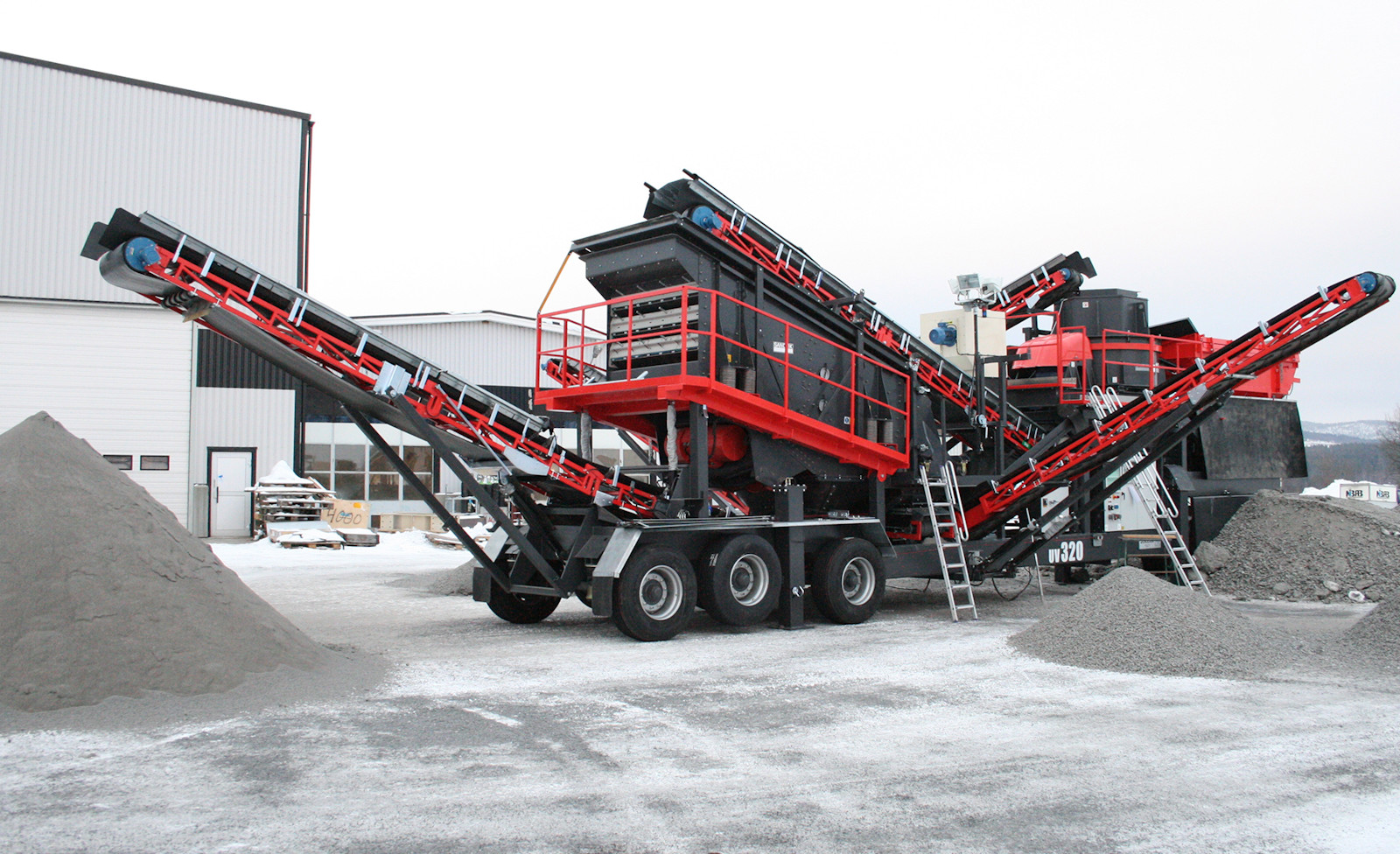

Sandvik UV320E is an integrated vertical shaft impact (VSI) crusher and three-way split screener on a wheeled chassis. Powered by electricity we have designed this unit for the production of premium shaped aggregates for the concrete and asphalt industries at a low cost per tonne.

Equipment: Sandvik CV217 VSI

Max. feed size: 50 mm (2 in.)

Capacity: Up to 200 mtph (220 stph)

Enquire about this equipment
Contact us
  • Features
    • Sandvik VSI technology –
      for consistent high quality
    • Closed circuit and interlocked process unit
    • Highly efficient on board screen –
      for product classification
    • Quick to set-up and easy to maintains –
      resulting in higher uptime and increased productivity
    • Easy access for service and maintenance
  • Product Data
    EquipmentSandvik CV217 VSI
    No. of products3 + Natural Fines
    Max. feed size50 mm (2 in.)
    CapacityUp to 200 mtph (220 stph)
    PowerkW
    Transport length18.6 m (58.1 ft)
    Transport width3.0 m (9.8 ft)
    Transport height4.5 m (14.8 ft)
    Weight46,300 kg (101,800 lb*)

    Please note all weights and dimensions are for standard units only.
    Former Name: RC107 Wheeled unit.

  • Additional Product Information

    Sandvik UV320E combines our state of the art Sandvik CV217 crusher and our three-way split screening technology for maximum mobility and flexibility of operation. Sandvik VSI technology, renowned for high capacity and cubical shape at a consistent quality, this unit is highly efficient and produces the highest quality materials.

    Sandvik’s extensive experience and testing has led to a machine that is highly productive, easy to set up and operate. In order to maximize uptime, the machine has been designed with easy access for servicing and maintenance as a priority.

    There are two variants available to optimize quality and capacity in different applications.

    Also available within this wheeled range are Sandvik UH320E and UF320E models.

  • Additional Advantages
    • Designed for maximum efficiency, high quality end product and low operating cost
    • Security+ extended warranty & service package for higher uptime and peace of mind.
