B3h

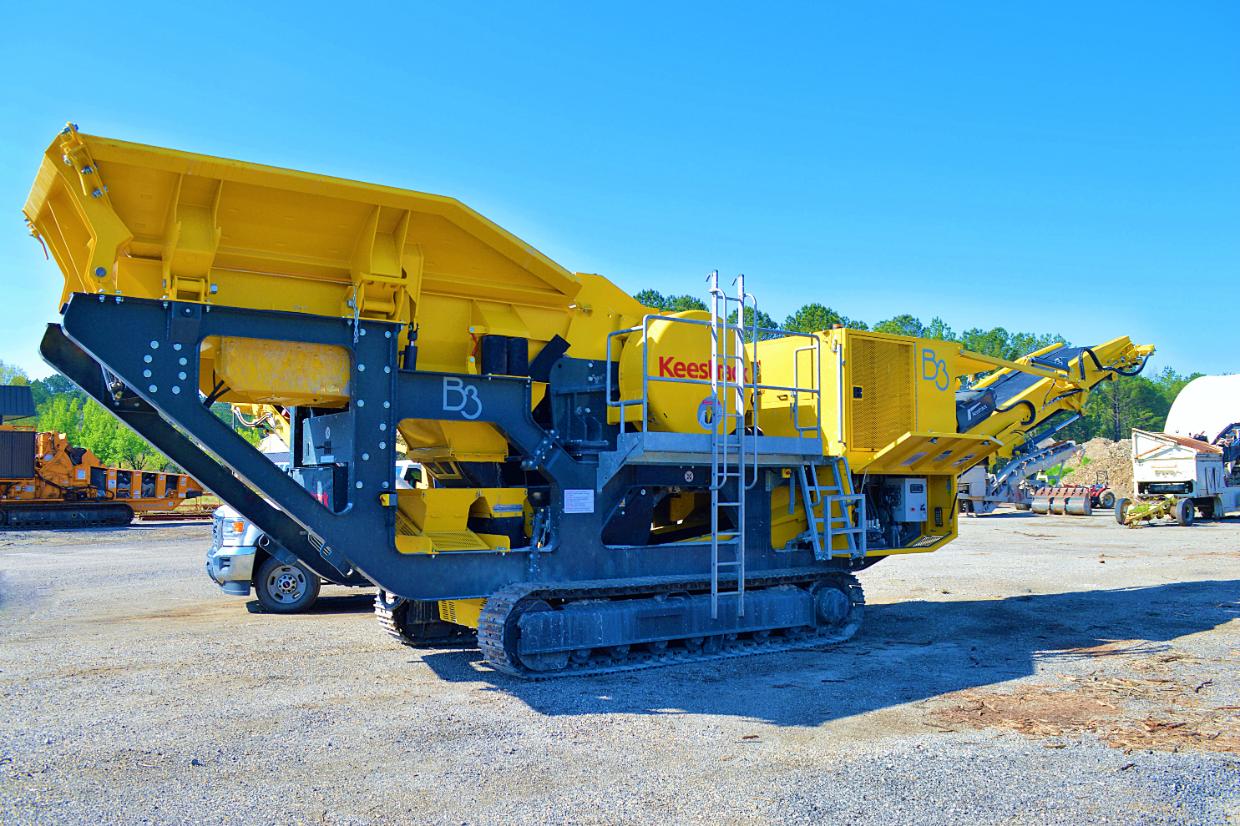

The best-performing and most compact crusher in its tier! The B3 Jaw Crusher has the largest Jaw opening in it's size range. It is the ideal crusher for jobs looking to optimize potential. The B3 features many Keestrack innovations in the Jaw crushing range like the automatic wear recovery, large eccentric throw, and NSS jaw crushing system.Condition: New Year: 2022 Make: Keestrack Model: B3 Location: Alabama Hours: TBA Price: Contact us for price
Enquire about this equipment
Contact us-
Video
-
Performance highlights
- Global leader in the 30 tonnes class
- Feed size up to 550 mm (22”)
- Feed opening 1.000 x 650 mm (40” x 25,5”)
- C.S.S min. – max. 45 – 160 mm (1 3/4” – 6″)
- Capacity up to 280 tonnes / hour
- Optional Independent double deck vibrating pre-screen
- Compact and easy to transport without permit
- Lowest fuel consumption in the industry
- Best product shape possible
- Intake hopper suitable for wheel loader and excavator, 4 m³ (5,3 yard³)
- Hydraulic gap adjustment to safely prevent clogging
- High reliable closed circuit smooth drive of jaw crusher
- Smart sequential auto start/stop from remote
- Ability to track while producing
- 2 speed track drive
- Extensive option list to configure to your application
-
Applications
- Granite, Basalt and most medium and hard stone
- Quarrying and mining
- Concrete and landfill recycling
- Construction waste
- Demolition
- Primary crushing
- Gravel
- Coal, slag and others
-
Specifications
Transport dimensions Working dimensions Weight 29 t (31 sT) Length 12.435 mm (40’10”) 12.300 mm (40’4”) Height 3.100 mm (10’2”) 3.700 mm (12’2”) Width 2.540 mm (8’4”) 5.525 mm (18’2”)
