UF473 Screen

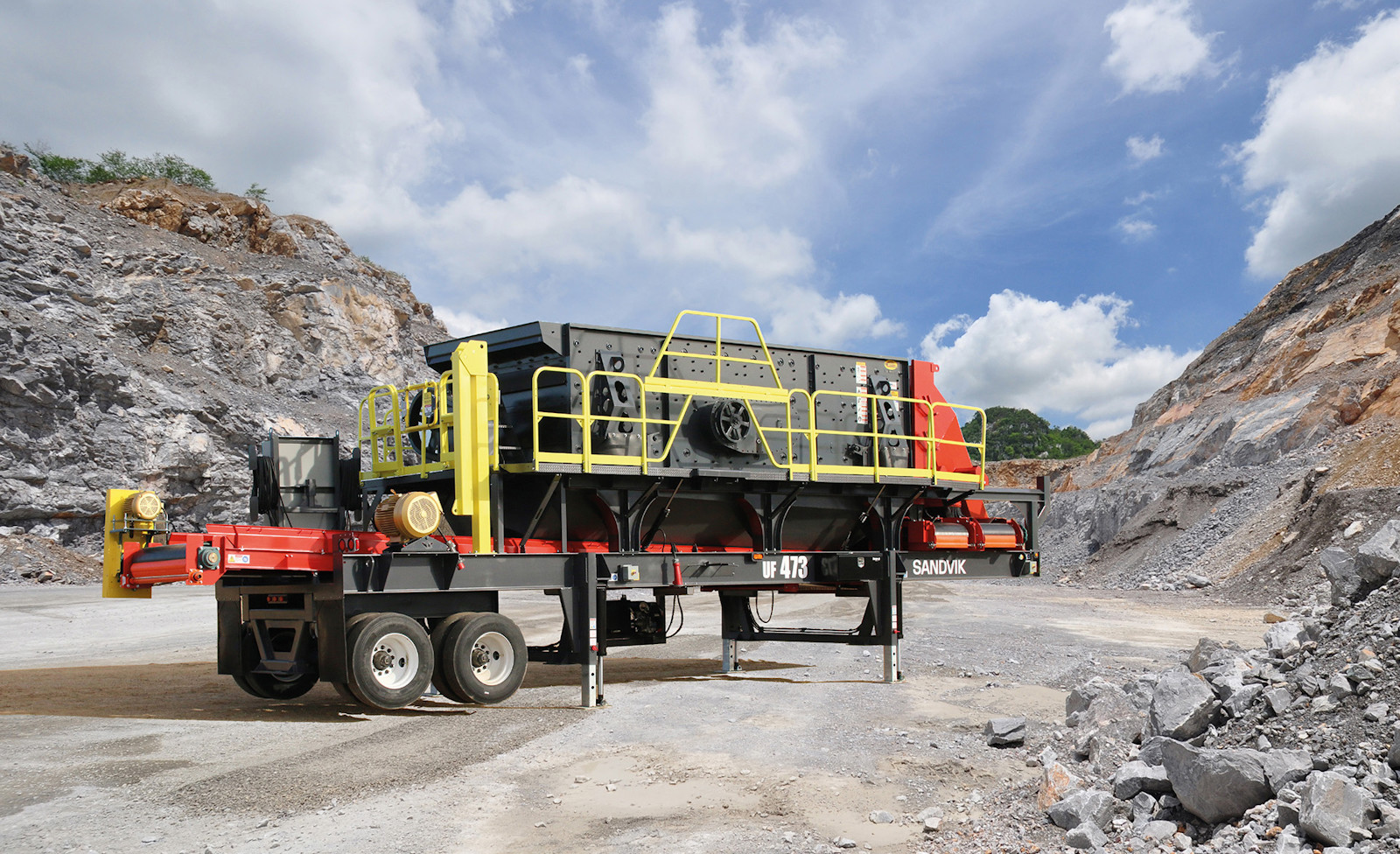

Sandvik UF473 wheeled screening unit features a triple-shaft 8’ x 20’ horizontal screen and is engineered to provide your operations with high-end productivity processing at a low cost-per-ton and reducing CO2.

Equipment: 6′ x 20′ Triple Shaft Horizontal screen

Max. feed size: 8 in. (200 mm )

Capacity: Up to 885 stph (800 mtph)

Enquire about this equipment
Contact us
  • Features
    • High quality rugged screen –
      with heavy duty bracing and frame members giving you a reliable and productive unit
    • Three deck 8′ x 20′ screen –
      with a high G force and eliptical throw result in increased capacity
    • Hydraulic folding walkways –
      for quick set up
    • Safety line for fall protection –
      over the screen box during maintenance
    • Low cost per tonne –
      due to electric operation
  • Product Data
    Equipment6′ x 20′ Triple Shaft Horizontal Screen
    Max. feed size8 in. (200 mm)
    CapacityUp to 885 stph (800 mtph)
    Power90 hp (67 kW)
    Transport length46.1 ft (14.1 m)
    Transport width11.0 ft (3.6 m)
    Transport height14.5 ft (4.4 m)
    Weight67,500 lb (30,617 kg)

    Please note all weights and dimensions are for standard units only.
    Please note this unit is exclusive to North America.

  • Additional Product Information

    Designed for the North American market, the Sandvik UF473 wheeled screening unit is fully assembled on a heavy-duty tandem axle trailer frame and features a triple-shaft 8’ x 20’ horizontal screen, cross and fines conveyors and a user-friendly control UL certified panel.

    Electrically driven, the Sandvik UF473 offers you the freedom to adapt to your rock processing needs. The three deck 8’ x 20’ screen’s high G force and elliptical throw combined with Sandvik’s quality conveyor designs and chute works ensures maximum productivity for your operation.

    Designed with enhanced safety in mind and ensuring you maximize the uptime of your equipment, the features on the machine are accessible and constructed to be easily serviced. Through Sandvik’s global support and accessibility to genuine wares and spares through our North American network, guarantees you get value throughout its lifecycle.

  • Additional Advantages
    • Ideal solution for your screening needs
    • Quick to set-up and easy to maintain –
      resulting in higher uptime and increased productivity
