QJ241 Jaw crusher

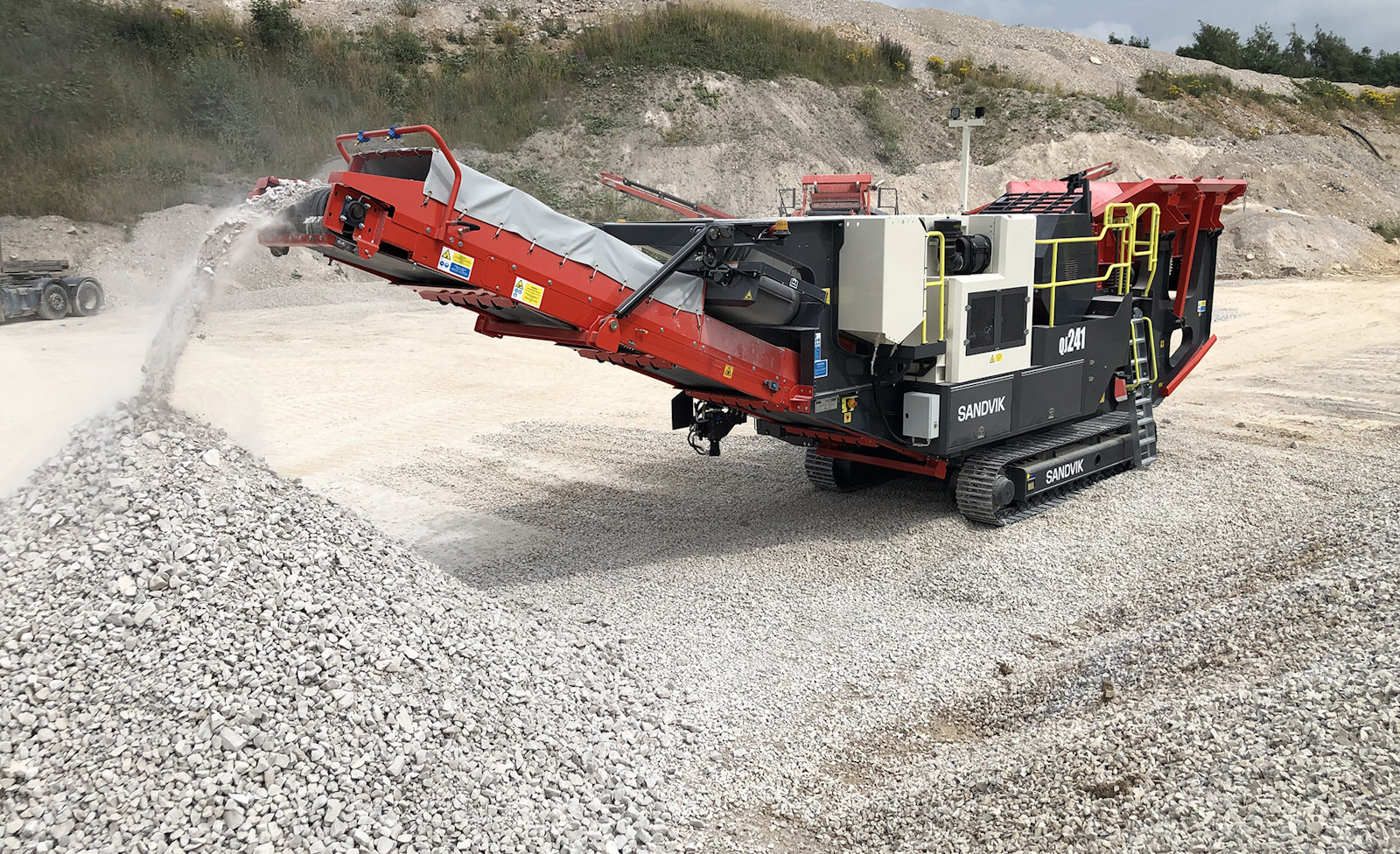

Sandvik QJ241 mobile jaw crusher is the most compact machine in the series and is ideal for smaller operations. Like the rest of the range, it delivers maximum productivity with low operating costs, and has been designed with the user in mind.

Equipment: Sandvik C10 jaw crusher

Feed opening: 1,000 x 650 mm (40 x 26 in.)

Max. feed size: 520 mm (21 in.)

Capacity: 225 mtph (248 stph)

Enquire about this equipment
Contact us
  • Features
    • Hydraulically adjustable jaw setting –
      to maximize your output
    • Reverse crushing action –
      to crush sticky material or relieve blockages
    • Hydraulic drive –
      enables the crusher to start under load, minimizing downtime
    • Jaw level sensor –
      to control the feed rate with minimal intervention
    • Raise/lower facility –
      on the main conveyor, ideal for your recycling operations
  • Product Data
    EquipmentSandvik C10 Jaw Crusher
    Feed opening1,000 x 650 mm (40 x 26 in.)
    Max. feed size520 mm (21 in.)
    Capacity225 mtph (248 stph)
    EngineC7.1 168 kW (225 hp)
    Transport length13.9 m (45.7 ft)
    Transport width2.5 m (8.3 ft)
    Transport height3.2 m (10.6 ft)
    Weight33,500 kg (73,855 lb)
    NotePlease note all weights and dimensions are for standard units only.
    Former NamesExtec C-10, Extec C-10+, QJ240 Jaw Crusher
    ApplicationSandvik QJ241 Recycling demolition material

    * Please refer to technical specification sheet for alternative engine options.
    Please note all weights and dimensions are for standard units only.
    Former Names: Extec C-10, Extec C-10+, QJ240 Jaw Crusher
    Sandvik QJ241 Recycling demolition material

  • Additional Product Information

    Sandvik QJ241 utilizes a substantial 1,000 x 650mm (40 x 26 in.) jaw, powered by a 168kW (225hp) engine. This means that while the machine is compact, it retains a high level of power and productivity. The jaw itself is hydraulically adjustable, allowing you to ensure your output is always at its optimum level.

    This mobile jaw crusher is the ideal solution for recycling sites, yet equally productive for a number of other applications. It’s a mobile, versatile machine built using Sandvik’s extensive research, experience, and customer feedback.

    Sandvik QJ241 also provides a greater discharge height and increased clearance for rebar discharge, due to the raise and lower facility on the main conveyor.

    Other models within this range include Sandvik QJ341 and QJ341+ tracked jaw crushers.

  • Additional Advantages
    • Fitted with Optitooth™ jaw plates for extended life, increased throughput and reduced fuel consumption
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operatio
    • Security+ extended warranty & service package for higher uptime and peace of mind.
