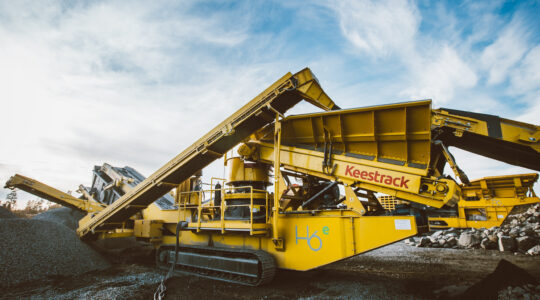

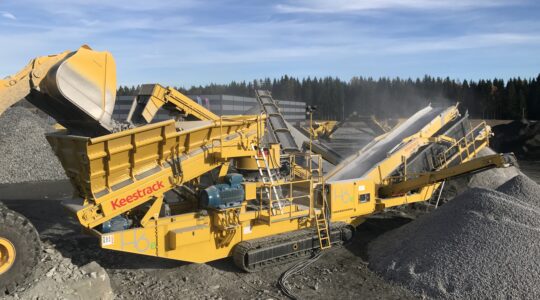

H6e/H6Se Cone


-H6Se cone crusher also available-
Enquire about this equipment
Contact us
  • Applications
    • Abrasive and hard stone
    • Hard rock and ore
    • Granite and basalt
    • Primary, secondary, tertiary or quaternary crushing
    • River and sea gravel
    • Quarrying and mining
    • Production of aggregates for asphalt, concrete and others
  • Performance highlights
    • Can be used in primary, secondary, tertiary or quaternary crushing
    • Designed to crush the toughest of rock and ore
    • Feed size up to 215 mm (8 5/10″)
    • C.S.S. min. – max. 16 – 44 mm (1″ -2″) depending on crushing chamber configuration
    • Capacity up to 395 tonnes / hour
    • Hopper 8 m³ (10 yard³)
    • Other configurations possible with different crushing chambers
    • Diesel / electric drive
    • 2 speed track drive
    • Optional 3-deck screen: Top: 4.640 mm x 1.800 mm, Middle and bottom 4.500 mm x 1.800 mm (14’9″ x 5’10”)
    • Effective screen area 8,1 m² on each deck, with return conveyor
    • Best product shape
    • Extensive option list to configure to your application
    • Removable engine /generator compartment

  • Specifications
    Transport dimensionsTransport dimensions with after screenWorking length with after screen
    Weight51,5 t (56 sT)62,1 t (68sT)62,1 t (68 sT)
    Length16.000 mm (52’6″)20.340 mm (66’9″)20.720 mm (67’12”)
    Height3.650 mm (12′)3.650 mm (12′)
    Width2.995 mm (9’10”)2.995 mm (9’10”)10.520 mm (34’6″)
