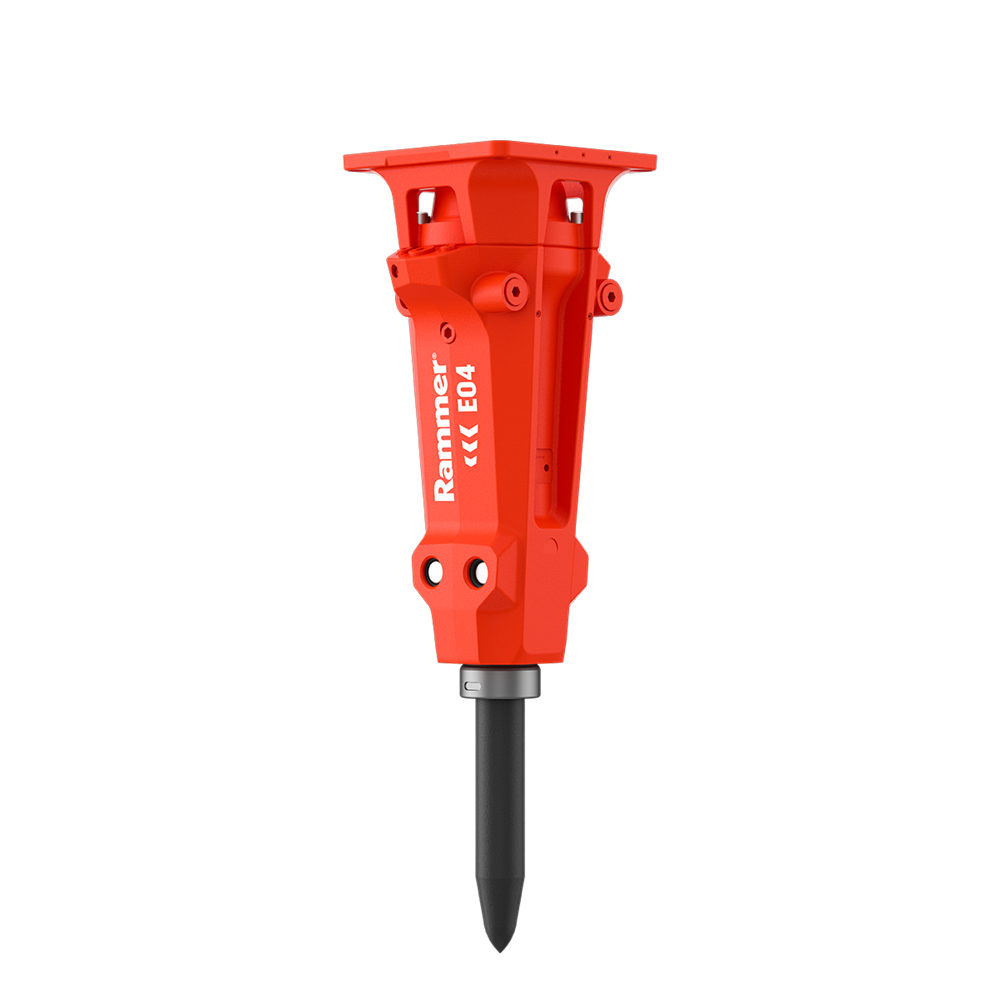

Rammer E04 compact range hydraulic hammer is suited for carriers in the 1.2 to 6.0 tonne range. Despite the small size, E04 packs the power of Rammer so you can enjoy piece of mind and smooth flow of operations in various applications.

Featuring CBE operating principle and membrane accumulator, E04 is easy to maintain and install to different carriers. Compact, right size for the job ensures higher productivity and optimized fuel consumption.

Modular body design structure enables versatile use through the whole lifecycle, and optional features including wear plates for cast body protection, RD3 and automatic greasing device further enhance durability.

Enquire about this equipment
Contact us
  • Features
    • Low pressure accumulator
      This accumulator accelerates the piston at constant energy (CBE).
    • Flange mounting
      The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
    • CBE (Constant Blow Energy)
      Optimum impact energy for every stroke, ensuring 100% constant power and productivity
    • Light weight
      The light weight design allows the use of smaller carriers without compromising the stability of the carrier.
    • Idle blow protector
      The Idle Blow Protection (IBP) ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures.
    • No tie rods
      A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools.
    • Single part tool bushing retained with shared tool pin
      The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
    • Fast-change tool system
      Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
    • Primary demolition
      Demolition of standing buildings and structures.
    • Trenching
      Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
    • Secondary demolition
      Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
    • Recycling
      Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
    • Cutting of asphalt or frozen ground
      The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
    • Landscaping
      Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
    • Ground Compacting
      With special compacting plate tool.
    • Underwater breaking
      Underwater breaking, be it primary breaking and/or demolition is a specialized application, in which material is broken and removed by equipment which is partly or fully submerged
  • Specification
    Minimum working weight, flange mounted  *1150 kg331 lb
    Impact rate (frequency)600 – 1800 bpm
    Operating pressure120 – 160 bar1740 – 2320 psi
    Oil flow range20 – 62 l/min5.3 – 16.4 gal/min
    Pressure relief max220 bar3190 psi
    Back pressure max30 bar435 psi
    Input power16.5 kW22 hp
    Tool diameter60 mm2.36 in
    Skid steer, robot weight, range  *21.2 – 4.0 t2600 – 8800 lb
    Miniexcavator weight, range  *22.0 – 6.0 t4400 – 13200 lb
    *1   Includes average mounting bracket and standard wear parts
    *2   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

    Specifications are subject to change without notice (Monday, May 8, 2023)
