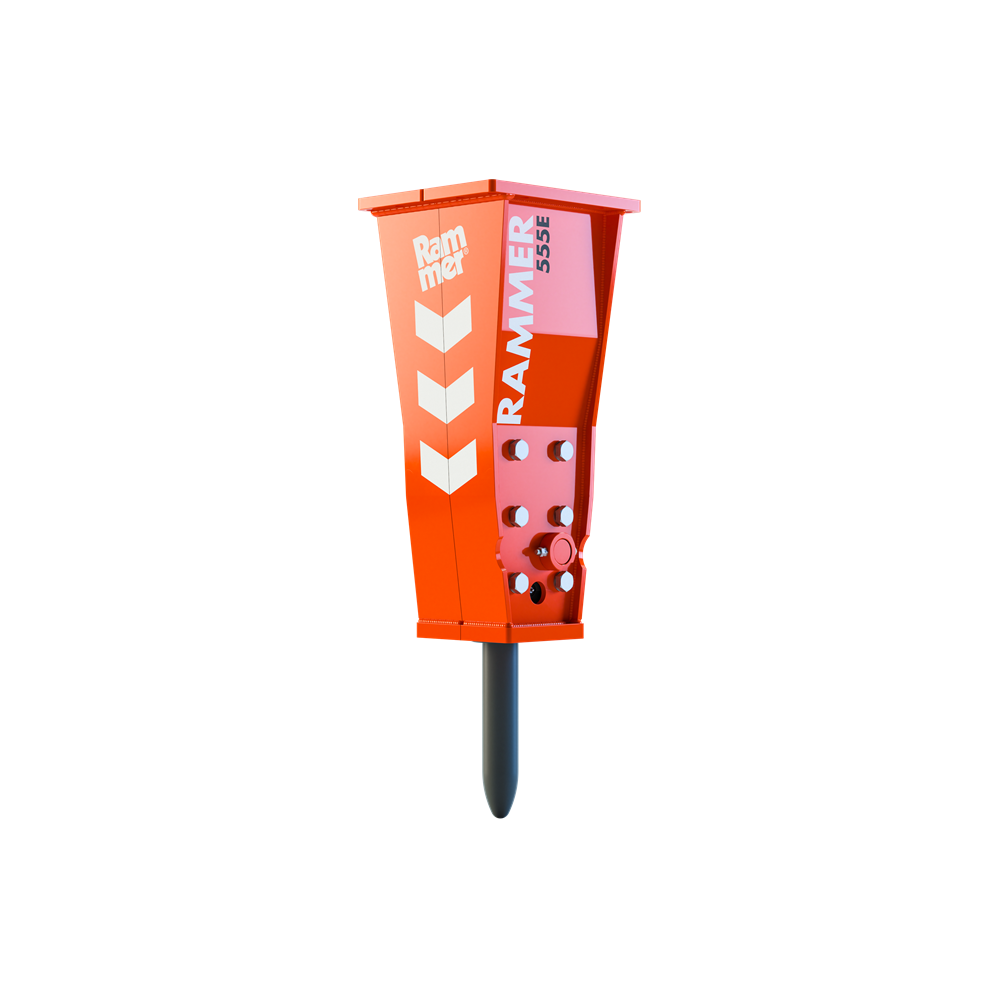

555E Heavy Duty


Rammer 555E has been designed for the toughest of applications. The 320 kg hammer is suitable for carriers in the 1.9 to 8.0 tonne range.

Heavy duty housing withstand wear and no-tie-rods enables fast and easy servicing. Twin handed design allows optimal mounting on both left and right-handed carriers, prolonging the service life of the hose connections.

The Rammer 555E Heavy Duty Small hydraulic hammer comes with remote monitoring device RD3 installed.

Enquire about this equipment
Contact us
  • Features
    • High pressure membrane accumulator
      Membrane-type accumulator eliminates Nitrogen leakages, ensuring constant maximum impact power and eliminating the need for recharging in field.
    • Twin handed, smart
      A connecting block allows easy adaptation to different excavator setups. This twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation with hydraulic quick hitch mounting brackets.
    • Tubular accumulator
      The leak-free tubular accumulator is filled with nitrogen and requires no maintenance or time-consuming recharging between maintenance intervals. With its large surface area and short hydraulic connections to the piston, it effectively reduces pressure fluctuations in the hydraulic system and ensures maximum piston acceleration and high impact frequency. This design provides 100% power at all times.
    • Flange mounting
      The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
    • Heavy duty housing
      Heavy duty housings feature a robust structure, are made of wear-resistant steel, with minimum number of holes. Resulting in a longer housing lifetime even in the harshest of applications, reducing the cost of ownership through less maintenance.
    • CBE+ (Constant Blow Energy plus)
      The RAMMER CBE-System (CBE = Constant Blow Energy) with the active pressure control valve and the permanently filled tubular accumulator maintains the hydraulic pressure level to ensure that each impact delivers the maximum possible power. The RAMMER CBE system accepts a wide range of oil flows and high back pressures, allowing a wide range of carriers to be used. The "+" stands for safe and fast connection to the carrier.
    • No tie rods
      A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools.
    • Single part tool bushing retained with shared tool pin
      The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
    • Fast-change tool system
      Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
    • RD3 incl. SAM (as standard)
      RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
  • Applications
    • Boom mounted applications
      Hammers for use on crushers to ensure unrestricted flow of process. Removal of boulders which are too large to fit into crusher or which block the grizzly. Absolutely necessary to ensure safe working procedures.
    • Primary demolition
      Demolition of standing buildings and structures.
    • Trenching
      Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
    • Secondary demolition
      Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
    • Cutting of asphalt or frozen ground
      The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
  • Specification
    Minimum working weight, flange mounted  *1320 kg705 lb
    Weight260 kg570 lb
    Working length1261 mm49.6 in
    Impact rate (frequency)600 – 1800 bpm
    Operating pressure90 – 140 bar1305 – 2030 psi
    Oil flow range35 – 90 l/min9.2 – 23.8 gal/min
    Pressure relief setting  *2140 – 190 bar2030 – 2755 psi
    Pressure relief max220 bar3190 psi
    Pressure in LP-circuit36 – 38 bar520 – 550 psi
    Back pressure max20 bar290 psi
    Input power21 kW28 hp
    Tool diameter72 mm2.83 in
    Pressure line connection (IN)BSPP-internal 3/4″
    Return line connection (OUT)BSPP-internal 3/4″
    Pressure line size, min. inner diameter19 mm0.75 in
    Return line size, min. inner diameter19 mm0.75 in
    Optimum oil temperature40 – 60 °C104 – 140 °F
    Allowed oil temperature range-20 – 80 °C-4 – 176 °F
    Optimum oil viscosity at operating temperature30 – 60 cSt
    Allowed viscosity range20 – 1000 cSt
    Skid steer, robot weight, optimum2.4 – 3.9 t5300 – 8600 lb
    Skid steer, robot weight, range  *31.9 – 5.3 t4200 – 11700 lb
    Miniexcavator, tractor backhoe weight, Optium3.6 – 5.8 t7900 – 12800 lb
    Miniexcavator, tractor backhoe weight, Range  *33.2 – 8.0 t7100 – 17600 lb
    Noise level, measured (2000/14/EC)127 dB(A)
    Noise level, guaranteed (2000/14/EC)131 dB(A)
    *1   Includes average mounting bracket and standard wear parts
    *2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
    *3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

    Specifications are subject to change without notice (Wednesday, August 23, 2023)
