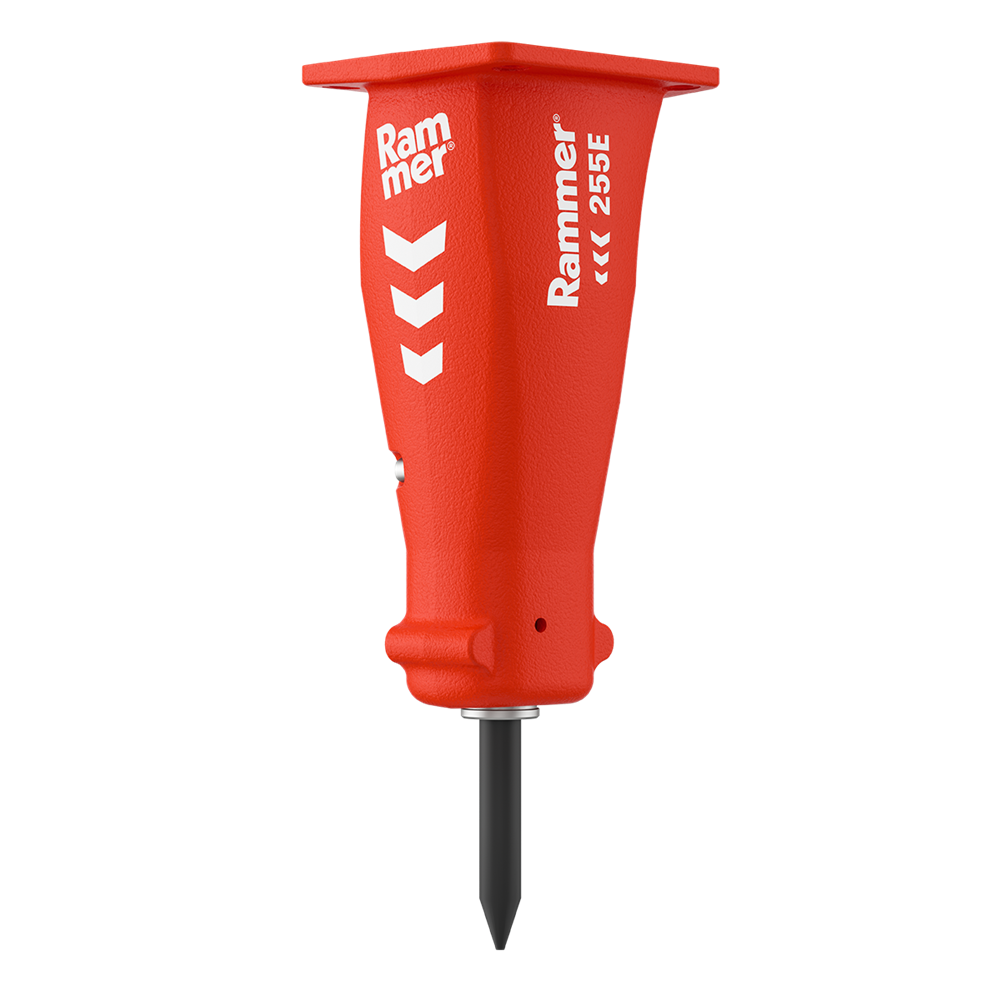

255E


The 255E is your no fuss solution for carriers between 0.9 and 2.5 tons. The 110 kg hammer is protected by box type housing and produces less noise and vibration, whilst is strong enough to take a beating.

The Rammer 255E comes with the remote monitoring hardware RD3 installed.

Enquire about this equipment
Contact us
  • FEATURES
    • Twin handed
      The twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation for hydraulic quick hitch mounting brackets.
    • Tubular accumulator
      The leak-free tubular accumulator is filled with nitrogen and requires no maintenance or time-consuming recharging between maintenance intervals. With its large surface area and short hydraulic connections to the piston, it effectively reduces pressure fluctuations in the hydraulic system and ensures maximum piston acceleration and high impact frequency. This design provides 100% power at all times.
    • Vibration and sound suppressed
      Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required.
    • Flange mounting
      The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
    • CBE+ (Constant Blow Energy plus)
      The RAMMER CBE-System (CBE = Constant Blow Energy) with the active pressure control valve and the permanently filled tubular accumulator maintains the hydraulic pressure level to ensure that each impact delivers the maximum possible power. The RAMMER CBE system accepts a wide range of oil flows and high back pressures, allowing a wide range of carriers to be used. The "+" stands for safe and fast connection to the carrier.
    • No tie rods
      A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools.
    • Single part tool bushing retained with shared tool pin
      The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
    • Fast-change tool system
      Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
    • RD3 incl. SAM (as standard)
      RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
  • APPLICATIONS
    • Primary demolition
      Demolition of standing buildings and structures.
    • Trenching
      Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
    • Secondary demolition
      Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
    • Recycling
      Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
    • Cutting of asphalt or frozen ground
      The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
    • Landscaping
      Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
    • Ground Compacting
      With special compacting plate tool.
  • Specification
    Minimum working weight, flange mounted  *1110 kg240 lb
    Weight88 kg190 lb
    Working length842 mm33.1 in
    Impact rate (frequency)600 – 3200 bpm
    Operating pressure95 – 150 bar1380 – 2175 psi
    Oil flow range15 – 35 l/min4.0 – 9.2 gal/min
    Pressure relief setting  *2150 – 200 bar2175 – 2900 psi
    Pressure relief max220 bar3190 psi
    Pressure in LP-circuit38 – 40 bar550 – 580 psi
    Back pressure max20 bar290 psi
    Input power8.8 kW12 hp
    Tool diameter40 mm1.57 in
    Pressure line connection (IN)BSPP-internal 1/2″
    Return line connection (OUT)BSPP-internal 1/2″
    Pressure line size, min. inner diameter12 mm0.47 in
    Return line size, min. inner diameter12 mm0.47 in
    Optimum oil temperature40 – 60 °C104 – 140 °F
    Allowed oil temperature range-20 – 80 °C-4 – 176 °F
    Optimum oil viscosity at operating temperature30 – 60 cSt
    Allowed viscosity range20 – 1000 cSt
    Skid steer, robot weight, optimum0.9 – 1.4 t2000 – 3100 lb
    Skid steer, robot weight, range  *30.8 – 1.7 t1800 – 3700 lb
    Miniexcavator weight, optimum1.4 – 2.1 t3100 – 4600 lb
    Miniexcavator weight, range  *31.2 – 2.5 t2600 – 5500 lb
    Noise level, measured (2000/14/EC)115 dB(A)
    Noise level, guaranteed (2000/14/EC)119 dB(A)
    *1   Includes average mounting bracket and standard wear parts
    *2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
    *3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

    Specifications are subject to change without notice (Tuesday, June 6, 2023)
