Specifications are subject to change without notice (Wednesday, August 23, 2023)

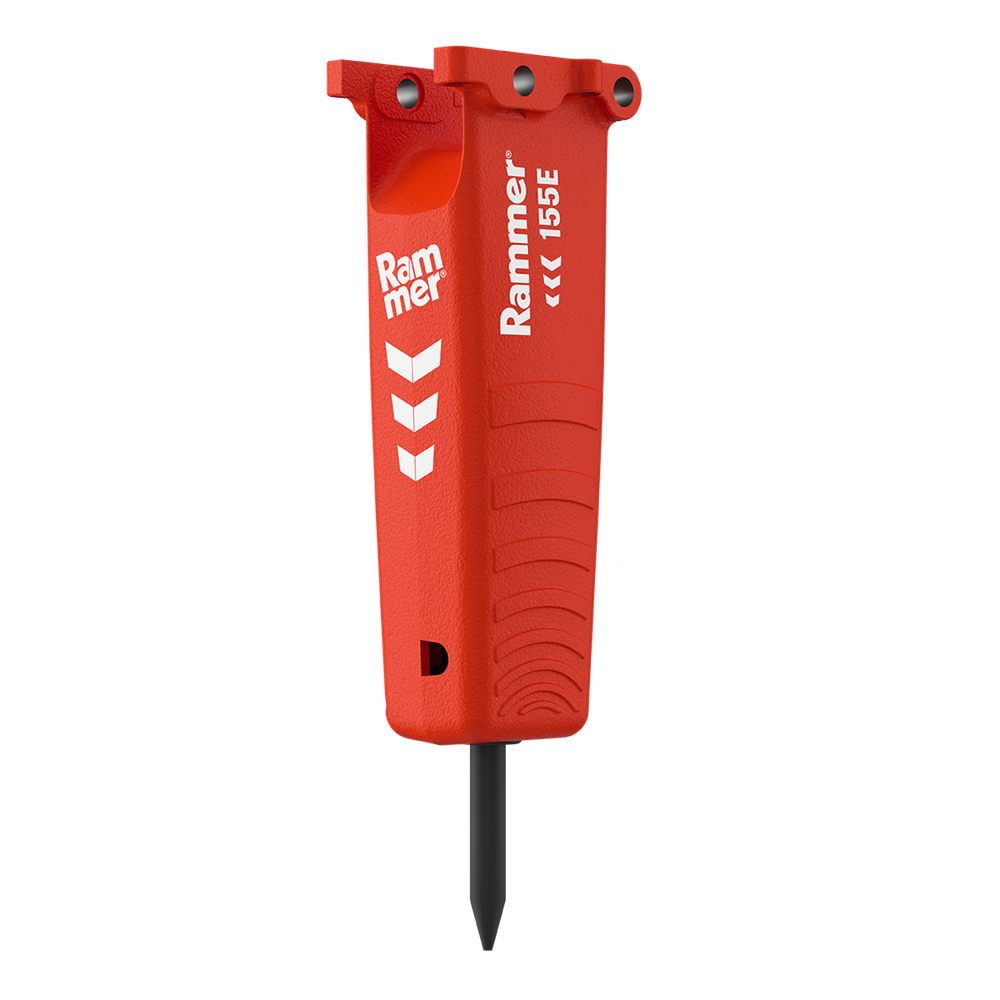

155E
The Rammer 155E is one of the fastest hitting hydraulic hammers. The 90 kg hammer is suitable for carriers in the 0.6 to 1.8 tonne range.
The Rammer 155E hammer features an integrated tubular membrane type accumulator which maximizes its surface area, to deliver the maximum breaking power.
The 155E comes with the remote monitoring hardware RD3 installed.
Enquire about this equipment
Contact us-
Features
- Twin handedThe twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation for hydraulic quick hitch mounting brackets.
- Tubular accumulatorThe leak-free tubular accumulator is filled with nitrogen and requires no maintenance or time-consuming recharging between maintenance intervals. With its large surface area and short hydraulic connections to the piston, it effectively reduces pressure fluctuations in the hydraulic system and ensures maximum piston acceleration and high impact frequency. This design provides 100% power at all times.
- Vibration and sound suppressedLess vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required.
- Pin and flange mountingPin or bracket for quick hitch or direct mounting
- PRS (Pressure Release System)The pressure release system (PRS) allows for the faster and safer removal of hose connections when dismounting.
- No tie rodsA smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool. Fast, safe and easy to maintain without the need for special tools.
- Single part tool bushing retained with shared tool pinThe one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component. This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
- Fast-change tool systemQuick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
- RD3 incl. SAM (as standard)RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
-
Applications
- Primary demolitionDemolition of standing buildings and structures.
- TrenchingTrenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
- Secondary demolitionDemolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- RecyclingRe-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Cutting of asphalt or frozen groundThe RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
- LandscapingGardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
-
Specification
Minimum working weight, flange mounted *1 90 kg 200 lb Minimum working weight, pin mounted *2 90 kg 200 lb Weight 74 kg 160 lb Working length 884 mm Impact rate (frequency) 1000 – 2600 bpm Operating pressure 80 – 130 bar 1500 – 1900 psi Oil flow range 15 – 33 l/min 4 – 9 gal/min Pressure relief setting *3 130 – 180 bar 1900 – 2600 psi Pressure relief max 220 bar 3200 psi Back pressure max 20 bar 300 psi Input power 7.2 kW 10 hp Tool diameter 36 mm 1.42 in Pressure line connection (IN) BSPP-internal 1/2″ Return line connection (OUT) BSPP-internal 1/2″ Pressure line size, min. inner diameter 12 mm 0.47 in Return line size, min. inner diameter 12 mm 0.47 in Optimum oil temperature 40 – 60 °C 104 – 140 °F Allowed oil temperature range -20 – 80 °C -4 – 176 °F Optimum oil viscosity at operating temperature 30 – 60 cSt Allowed viscosity range 20 – 1000 cSt Skid steer, robot weight, optimum 0.7 – 1.0 t 1500 – 2200 lb Skid steer, robot weight, range *4 0.6 – 1.3 t 1300 – 2900 lb Miniexcavator weight, optimum 1.0 – 1.5 t 2200 – 3300 lb Miniexcavator weight, range *4 0.8 – 1.8 t 1800 – 4000 lb Noise level, measured (2000/14/EC) 115 dB(A) Noise level, guaranteed (2000/14/EC) 119 dB(A) *1 Includes average mounting bracket and standard wear parts
*2 Includes average mounting pins and standard wear parts
*3 Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*4 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
