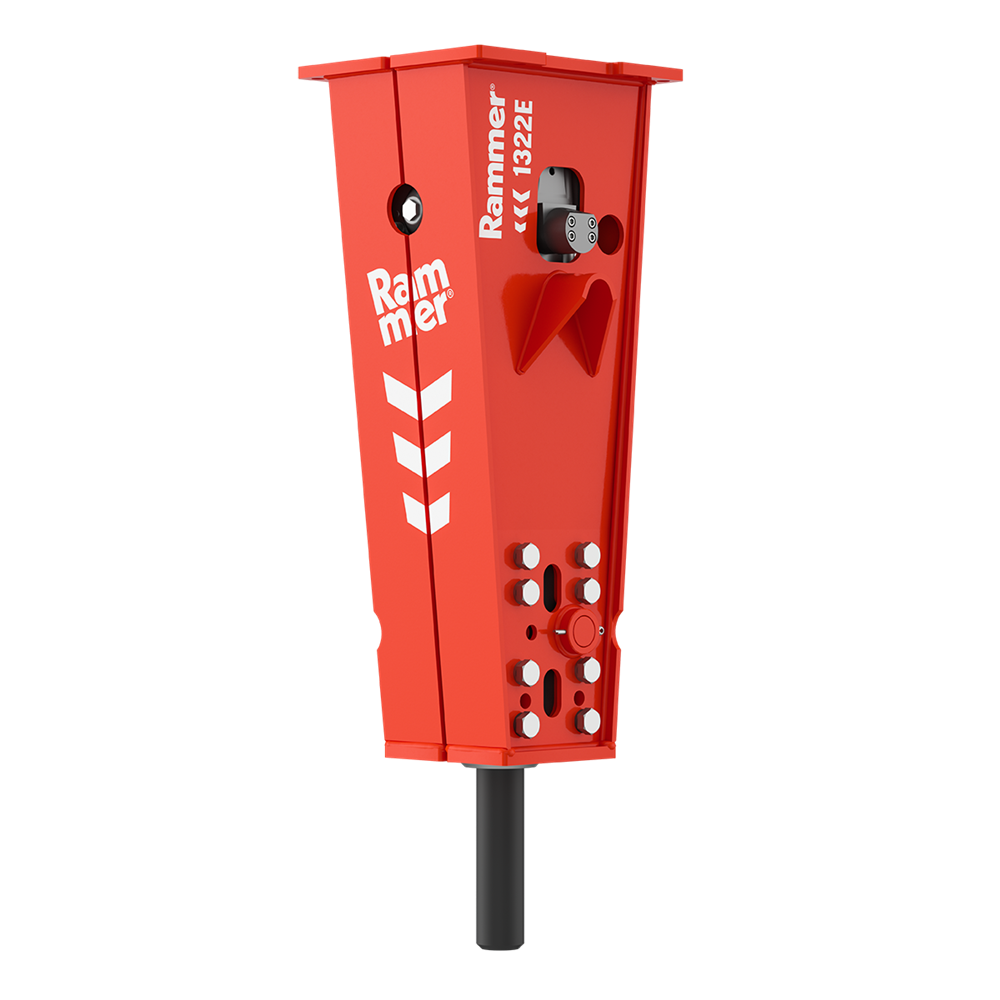

1322E


The Rammer 1322E has been built to last. The 850 kg hammer is suitable for carriers in the 9 to 15 tonne range. Low-maintenance design ensures lower owning and operating costs.

The 1322E features field replaceable lower tool bushing and sealed membrane-type accumulator to ensure that every blow is as hard as the previous, whilst providing protection against hydraulic spikes.

The Rammer 1322E comes with the remote monitoring hardware RD3 installed.

Enquire about this equipment
Contact us
  • Features
    • High pressure membrane accumulator
      Membrane-type accumulator eliminates Nitrogen leakages, ensuring constant maximum impact power and eliminating the need for recharging in field.
    • Low pressure accumulator
      This accumulator accelerates the piston at constant energy (CBE).
    • Flange mounting
      The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
    • Heavy duty housing
      Heavy duty housings feature a robust structure, are made of wear-resistant steel, with minimum number of holes. Resulting in a longer housing lifetime even in the harshest of applications, reducing the cost of ownership through less maintenance.
    • CBE (Constant Blow Energy)
      Optimum impact energy for every stroke, ensuring 100% constant power and productivity
    • RAMLUBE I (optional)
      Carrier mounted greasing device
    • RD3 incl. SAM (as standard)
      RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM. For further information, please contact your Rammer distributor.
    • Air connection
      Air connection as standard for connection to either Ramair or applications under water. Read the operator's manual and consult with your dealer.
    • Ramair (optional)
      The RAMMER - RAMAIR air supply prevents dirt from entering the hammer housing and the impact chamber in order to achieve longest service life of the RAMMER hammer even in the most demanding applications. It also ensures that the tool grease is conveyed to the tool bushings at any time and in any position of the hammer and that no overfilling occurs. The RAMMER - RAMAIR is particularly recommended for highly abrasive and dusty materials or overhead applications, such as tunneling or robbery work.
  • Applications
    • Boom mounted applications
      Hammers for use on crushers to ensure unrestricted flow of process. Removal of boulders which are too large to fit into crusher or which block the grizzly. Absolutely necessary to ensure safe working procedures.
    • Primary demolition
      Demolition of standing buildings and structures.
    • Trenching
      Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
    • Cutting of asphalt or frozen ground
      The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
    • Secondary breaking
      When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance.
    • Underwater breaking
      Underwater breaking, be it primary breaking and/or demolition is a specialized application, in which material is broken and removed by equipment which is partly or fully submerged.
  • Specification
    Minimum working weight, flange mounted  *1850 kg1870 lb
    Weight710 kg1570 lb
    Impact rate (frequency)500 – 1000 bpm
    Operating pressure125 – 160 bar1815 – 2320 psi
    Oil flow range60 – 120 l/min15.9 – 31.7 gal/min
    Pressure relief setting  *2175 – 210 bar2540 – 3045 psi
    Pressure relief max220 bar3190 psi
    Pressure in LP-circuit26 – 28 bar375 – 405 psi
    Back pressure max20 bar290 psi
    Input power32 kW43 hp
    Tool diameter95 mm3.74 in
    Pressure line connection (IN)BSPP-internal 1″
    Return line connection (OUT)BSPP-internal 1″
    Pressure line size, min. inner diameter26 mm1.02 in
    Return line size, min. inner diameter26 mm1.02 in
    Grease connectionBSPP-internal 3/8″
    Air connection (A)BSPP-internal 1/2″
    Optimum oil temperature40 – 60 °C104 – 140 °F
    Allowed oil temperature range-20 – 80 °C-4 – 176 °F
    Optimum oil viscosity at operating temperature30 – 60 cSt
    Allowed viscosity range20 – 1000 cSt
    Carrier weight, range  *39 – 15 t19800 – 33100 lb
    Noise level, measured (2000/14/EC)136 dB(A)
    Noise level, guaranteed (2000/14/EC)140 dB(A)
    *1   Includes average mounting bracket and standard wear parts
    *2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
    *3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

    Specifications are subject to change without notice (Tuesday, June 6, 2023)
